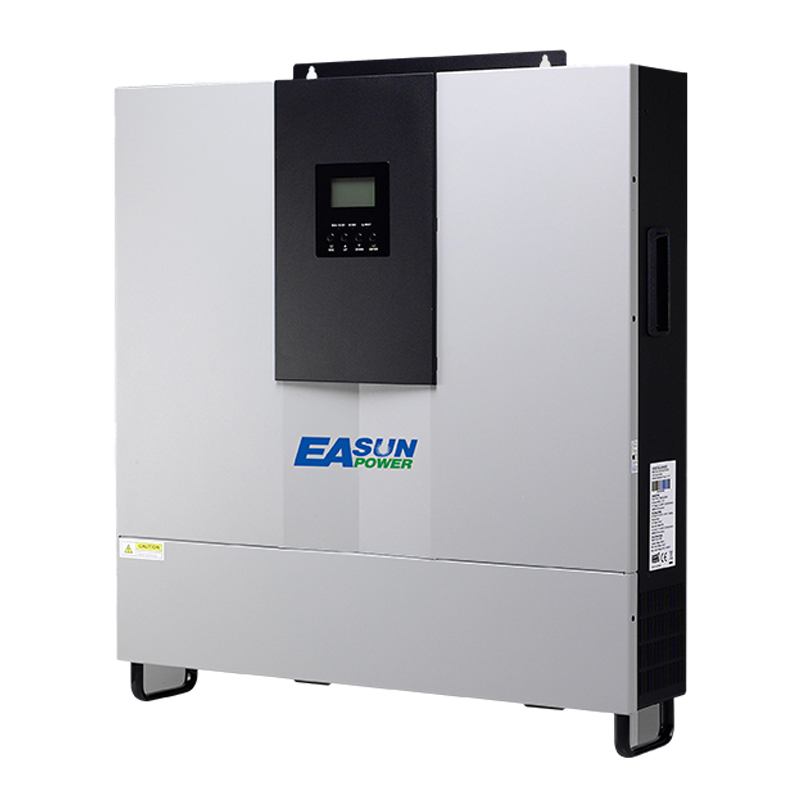

EASUN POWER Solar Pure Sine Wave Hybrid Inverter 110V – 3KW (24V) MPPT

Pure sine wave Inverter
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable charging current and voltage
Programmable multiple operation modes: Grid-tie, off-grid
and grid-tie with backup
Monitoring software for real-time status display and control
Parallel-able for 3KW/4KW/5KW models

MODEL
GRID-TIE OPERATION
OFF-GRID, HYBRID OPERATION
GENERAL
ENVIRONMENT
IGrid SV LV-3K-24
Max. PV Array Power 2000W
Maximum PV Array Open Circuit Voltage 145 VDC
MPPT Range @ Operating Voltage 30 VDC ~ 115 VDC
Number of MPP Tracker 1
Nominal Output Voltage 110/120 VAC
Rated Output Power 2400W
Output Voltage Range 88~127 Vac VAC*
Nominal Output Current 27 A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 90%
AC Start-up Voltage / Auto Restart Voltage 60 – 70 VAC / 90 VAC
Acceptable Input Voltage Range 95-140 VAC
Maximum AC Input Current 40A
Nominal Output Voltage 110/120 VAC
Rated Output Power 2400W / 3000VA
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 93%
Nominal DC Voltage 24 VDC
Maximum Charging Current (from Grid) 60A
Maximum Charging Current (from PV) 80A
Maximum Charging Current 140A
Dimension, D X W X H (mm) 120x295x505
Net Weight (kgs) 11.5
Parallel-able Yes. Single phase, Split phase
External Safety Box (Optional) Yes
Communication USB/Dry-Contact
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature 0 to 50°C
