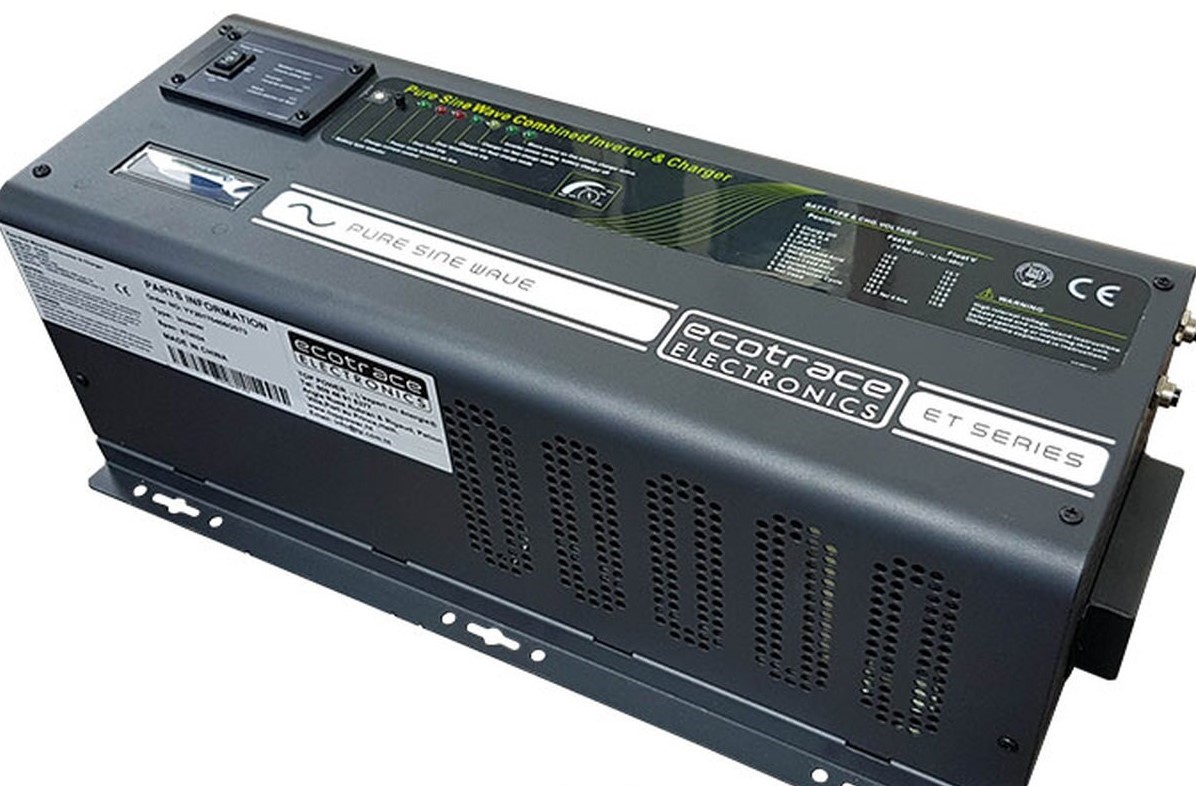

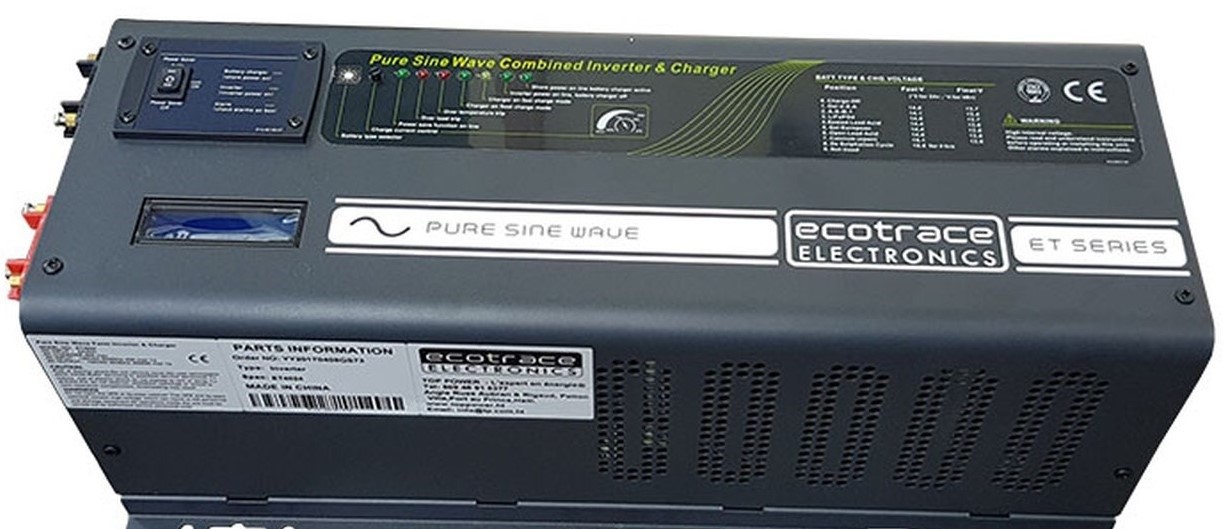

ECOTRACE Inverter/Charger ECOTRACE 4,000 Watts 120/240VAC @ 24 VDC

Ecotrace Inverters especially design for Haiti Market.

The AC/Battery priority and auto generator start functionality make the power star inverter suitable to work in either backup power or renewable energy applications. When customized to Battery priority mode via a DIP switch, the Ecotrace inverter will extract maximum power from external sources and renewable energy systems, with only minimal battery cycles being required. The overloads capacity is 300% for up to 20 seconds. In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility. When switching to battery priority mode via the DIP switch, the Power Star inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.
