Description

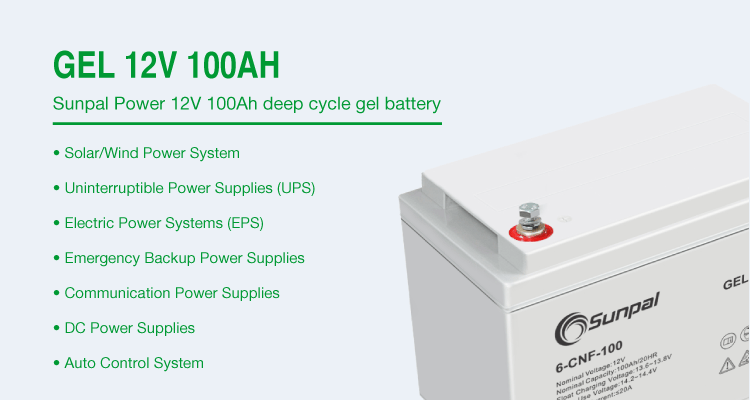

GEL 12V 100AH Specification
Specification
|
Model
|
6-CNF-100
|
|
Cells Per Unit
|
6
|
|
Voltage Per Unit
|
12
|
|
Capacity
|
100Ah@20hr-rate to 1.75V per cell @25℃
|
|
Weight
|
Approx. 30.0 Kg (Tolerance±1.5%)
|
|
Internal Resistance
|
Approx. 7.5 mΩ
|
|
Terminal
|
F12(M8)/F5(M8)
|
|
Max. Discharge Current
|
1000A (5 sec)
|
|
Design Life
|
15 years (floating charge)
|
|
Maximum Charging Current
|
20.0A
|
|
Reference Capacity
|
C3 68.1AH C5 78.5AH C10 87.7AH C20 100.0AH
|
|
Float Charging Voltage
|
13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
|
|
Cycle Use Voltage
|
14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
|
|
Operating Temperature Range
|
Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃
|
|
Normal Operating Temperature Range
|
25℃±5℃
|
|
Self Discharge
|
SUNPAL Valve Regulated Lead Acid (VRLA) batteries can
be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using. |
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
Constant Current Discharge Characteristics : A(25℃)
|
F.V/Time
|
15MIN
|
30MIN
|
1HR
|
2HR
|
4HR
|
8HR
|
10HR
|
20HR
|
|
1.60V
|
145.0
|
95.4
|
55.9
|
33.4
|
19.1
|
11.0
|
9.12
|
5.50
|
|
16.5V
|
142.1
|
93.8
|
55.6
|
33.2
|
19.0
|
10.9
|
9.03
|
5.30
|
|
1.70V
|
139.8
|
93.0
|
55.1
|
32.9
|
18.9
|
10.8
|
8.95
|
5.15
|
|
1.75V
|
134.7
|
93.2
|
54.6
|
32.7
|
18.8
|
10.7
|
8.86
|
5.00
|
|
1.80V
|
125.6
|
92.5
|
53.3
|
32.1
|
18.3
|
10.6
|
8.77
|
4.70
|
|
1.85V
|
114.0
|
87.4
|
50.7
|
30.7
|
17.4
|
10.1
|
8.51
|
4.50
|
Constant Power Discharge Characteristics : WPC(25℃)
|
F.V/Time
|
15MIN
|
30MIN
|
1HR
|
2HR
|
4HR
|
8HR
|
10HR
|
20HR
|
|
1.60V
|
264
|
178
|
108
|
65.7
|
38.0
|
21.9
|
18.2
|
9.73
|
|
16.5V
|
259
|
176
|
107
|
65.3
|
37.9
|
21.8
|
18.1
|
9.56
|
|
1.70V
|
256
|
177
|
107
|
64.9
|
37.9
|
21.6
|
17.9
|
9.38
|
|
1.75V
|
247
|
177
|
106
|
64.5
|
37.5
|
21.5
|
17.7
|
9.20
|
|
1.80V
|
231
|
176
|
104
|
63.6
|
36.7
|
21.1
|
17.5
|
9.03
|
|
1.85V
|
211
|
167
|
99.2
|
61.3
|
34.9
|
20.2
|
17.0
|
8.50
|
