Description

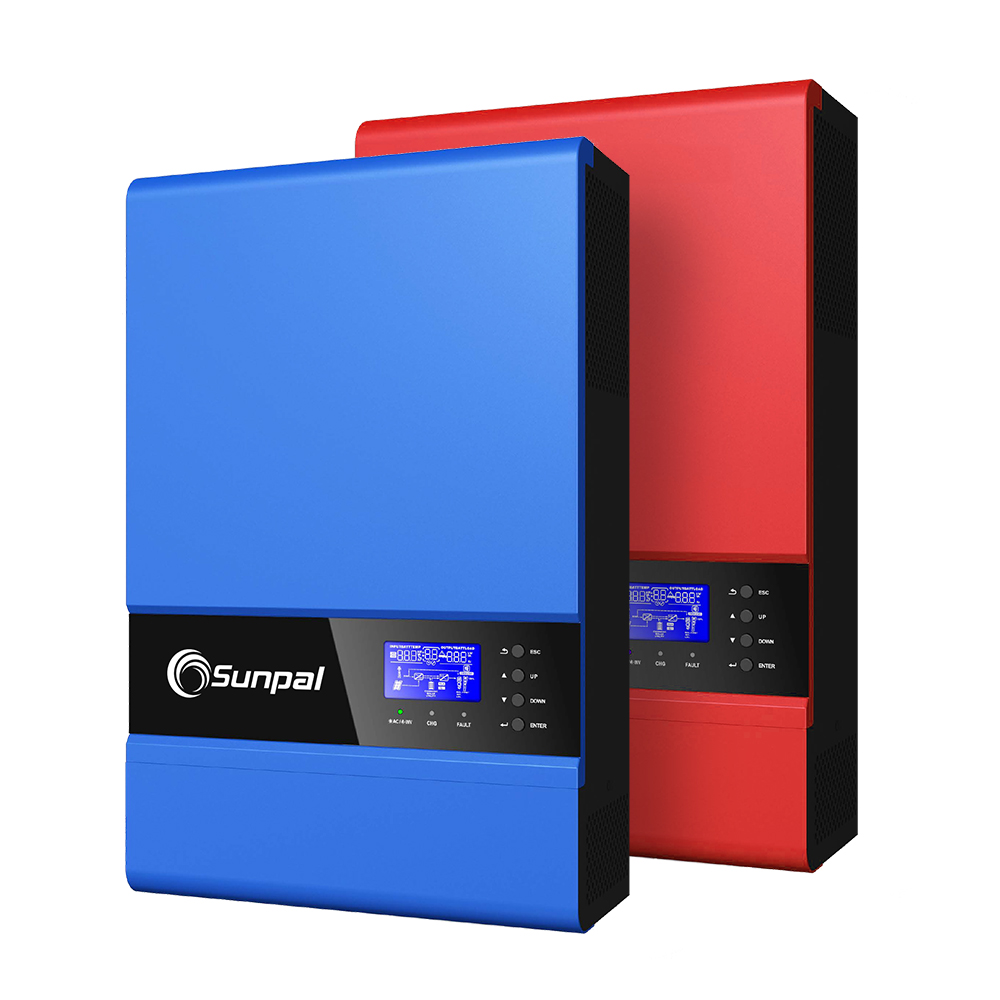

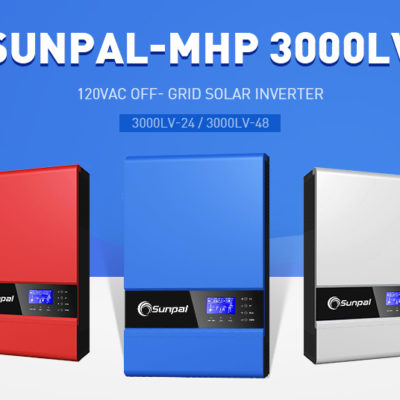

SUNPAL Solar Pure Sine Wave Hybrid Inverter 110/220 3KW (48V) MHP
Brand Name: Sunpal
Model Number: Sunpal-MHP 3000LV-24/48
Input Voltage: 60~115VDC
Output Voltage: 110/120VAC
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 455*295*130mm
Type: DC/AC Inverters
Weight: 11.5kg
AC Voltage Regulation (Batt. Mode): 110/120VAC
Waveform: Pure sine wave
Maximum Efficiency: 93%
AC Input Voltage Range: 65~140VAC
Max. Charge Current (PV+AC): 40A/120A
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Transfer Time: 10ms (For Personal Computers); 20ms(For Home Appliances)
Technical specifications
|
Model
|
Sunpal-MHP 3000LV-24
|
Sunpal-MHP 3000LV-48
|
|
Rated Power
|
3000VA/ 3000W
|
3000VA/ 3000W
|
|
System DC voltage
|
24VDC
|
48VDC
|
|

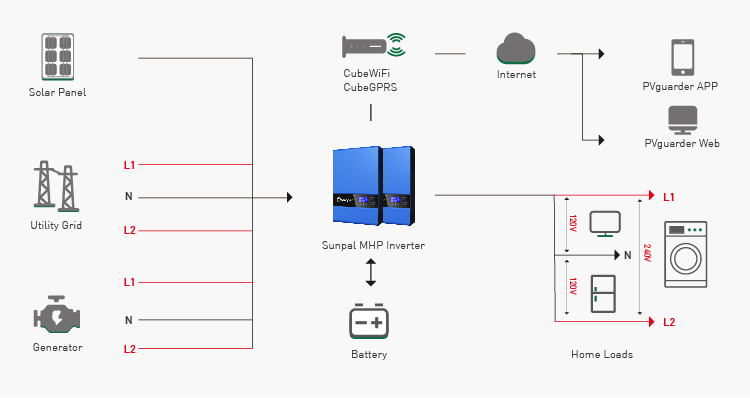

Splite phase operation
|
Yes, need at lest 2 units in parallel
|
Yes, need at lest 2 units in parallel
|
|
Parallel operation
|
Up to 6 units
|
Up to 6 units
|
|
Monitoring Option
|
WiFi or GPRS
|
WiFi or GPRS
|
|
Output
|
||
|
AC Voltage
|
110/120VAC
|
110/120VAC
|
|
Peak Efficiency
|
93%
|
93%
|
|
Transfer Time
|
10ms (For Personal Computers); 20ms(For Home Appliances)
|
|
|
AC nominal voltage
|
220V/230V/240V
|
220V/230V/240V
|
|
Solar Charger & AC Charger
|
||
|
Max. PV Array Open Circuit Voltage
|
145V
|
145V
|
|
Max. PV Array Power
|
2000W
|
4500W
|
|
Operating Voltage MPPT Range
|
60~115VDC
|
60~115VDC
|
|
Max. Solar Charge Current
|
80A
|
80A
|
|
AC Input Voltage Range
|
65~140VAC
|
65~140VAC
|
|
Frequency Range
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Max. AC Charge Current
|
60A
|
60A
|
|
Max. Charge Current (PV+AC)
|
140A
|
120A
|
|
Physical
|
||
|
Dimension
|
455×295×130mm
|
455×295×130mm
|
|
Weight
|
11.5kg
|
11.5kg
|
|

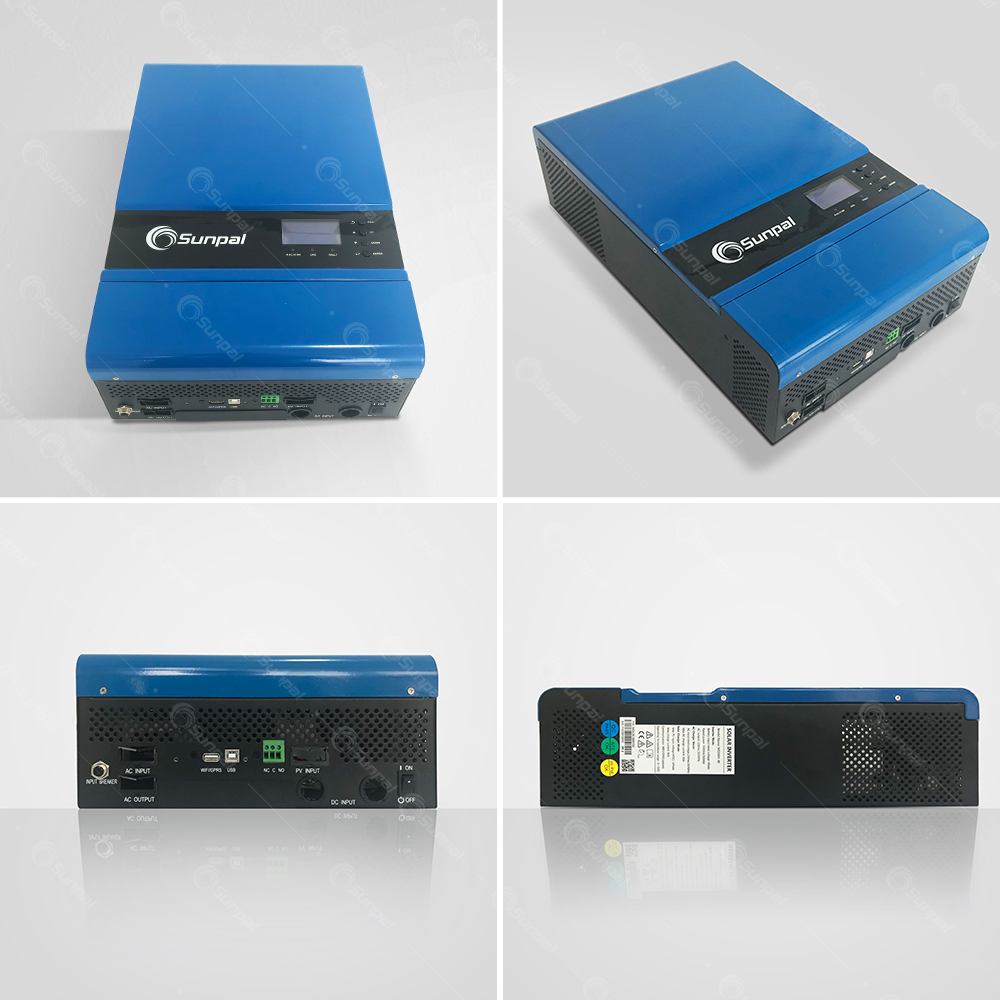

Communication Interface
|
USB/RS485
|
USB/RS485
|
|
Environment
|
||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
|
Operating Temperature
|
0°C~50°C
|
|
|
Storage Temperature
|
-15°C~60°C
|
|
